Hardware Identification

Hardware Summary:

Component	Details
SoC	MStar SSC333 (Sigmaster i6b0)
Bootloader	U-Boot 2015.01 (August 24 2021)
Flash	Winbond W25Q64 - 8MB SPI NOR
RAM	64MB
Kernel	ARM Linux 4.9.84, LZMA compressed

• Disassembled the camera:

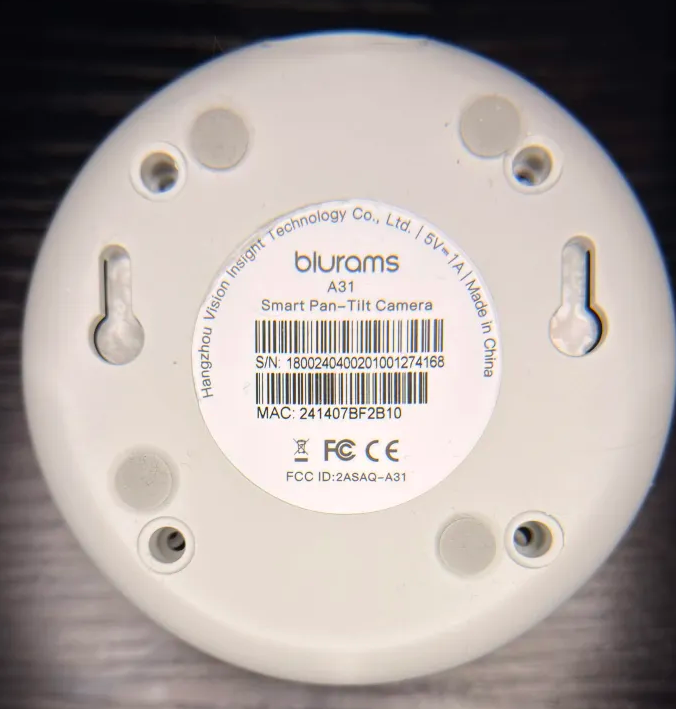

  • Bottom of camera

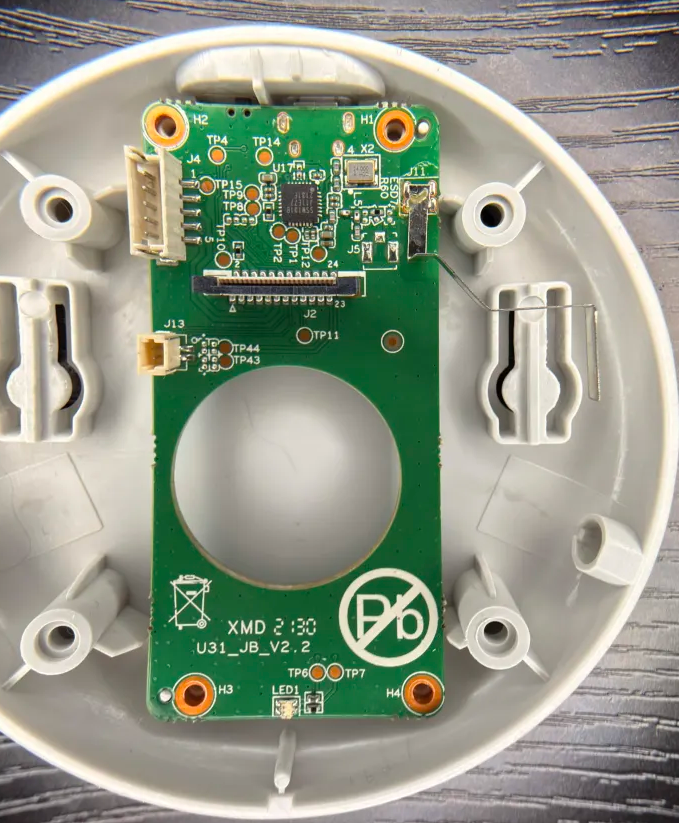

  • Power and base motor controller
  • Horizontal/base motor and vertical/ camera motor both used this motor

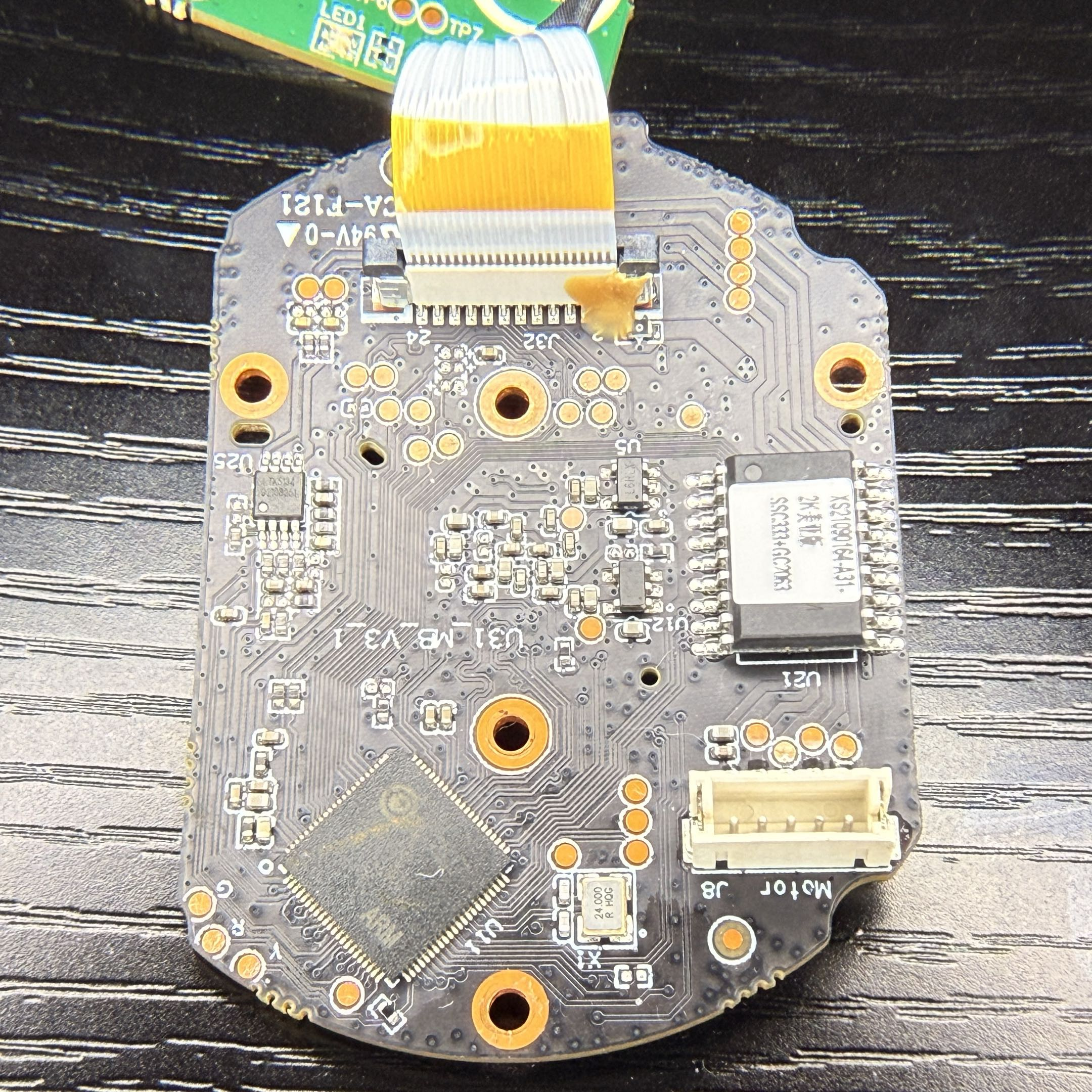

  • There is a ribbon connector from the power board in the base, to the main logic board

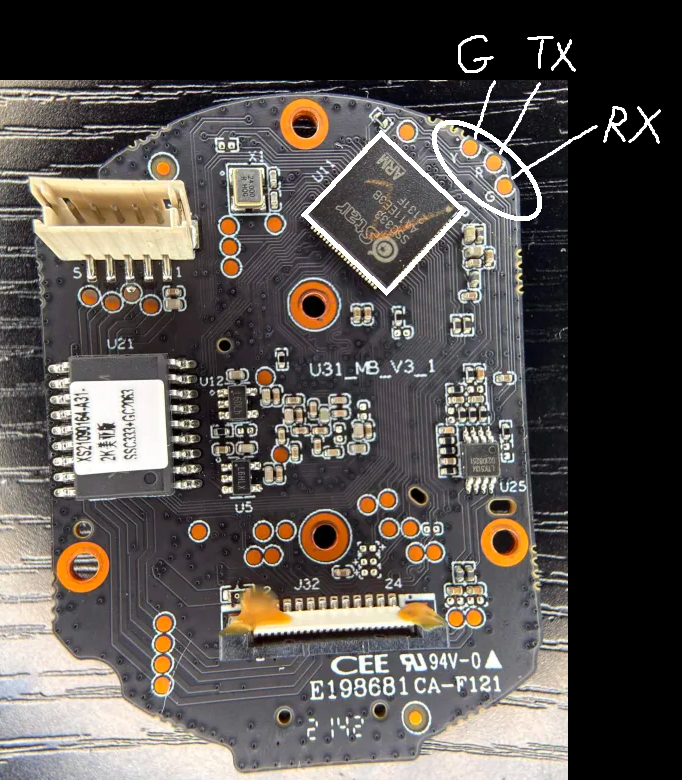

  • The main logic board has various unidentified pads, but the UART (Ground, TX, RX) Pads and So7C are identified below. SoC is an ARM MStar SSC333 (Sigmaster)

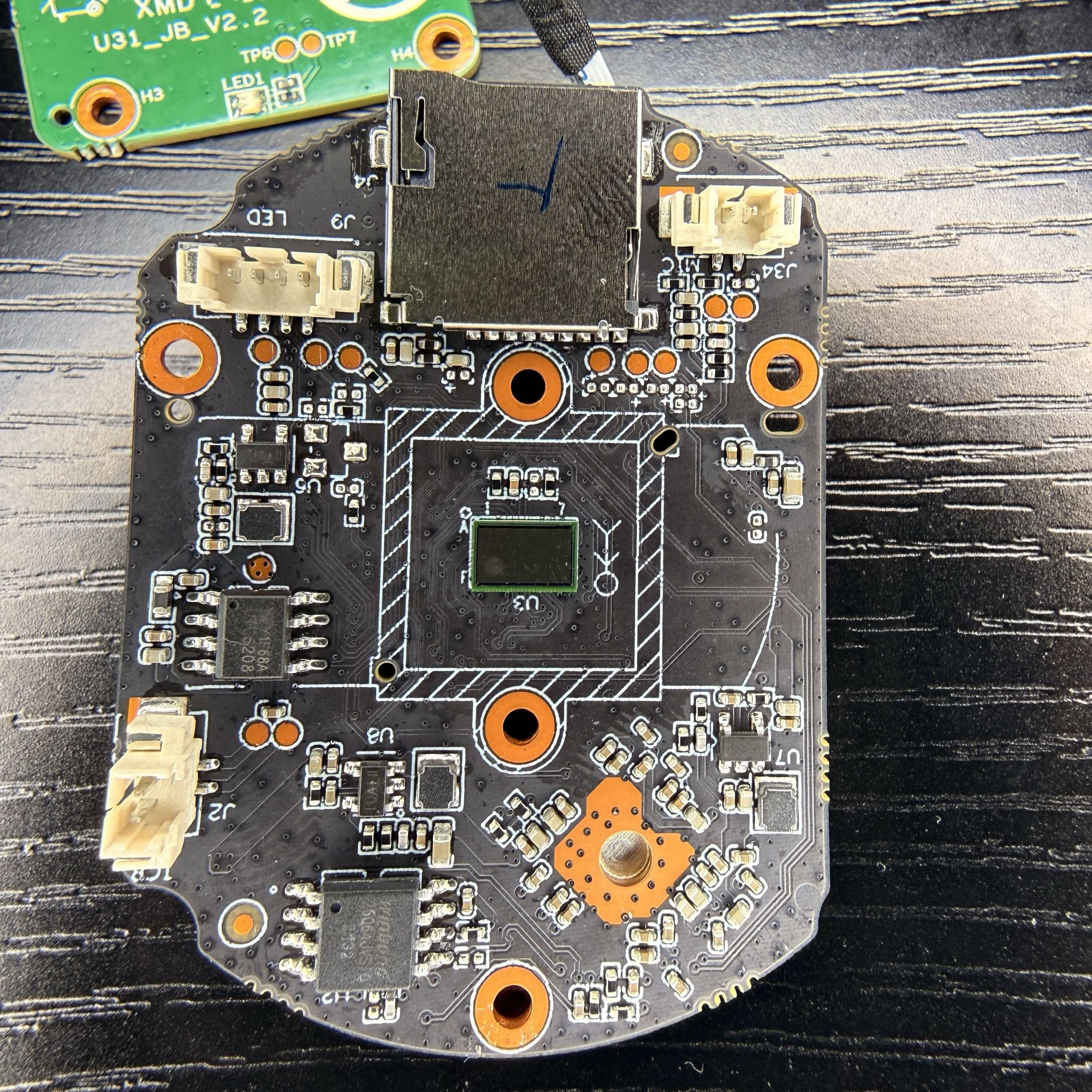

    • Other side of main board:
    • Flash chip- Winbond W25Q64JVSIQ
