There is no way to interact with the camera over the network by default. The flash chip contains the entire OS, application, and config. By dumping it, I was able to get offline access and view more information on the camera than is exposed by default.

  • Connected CH341A Mini-Programmer to PC

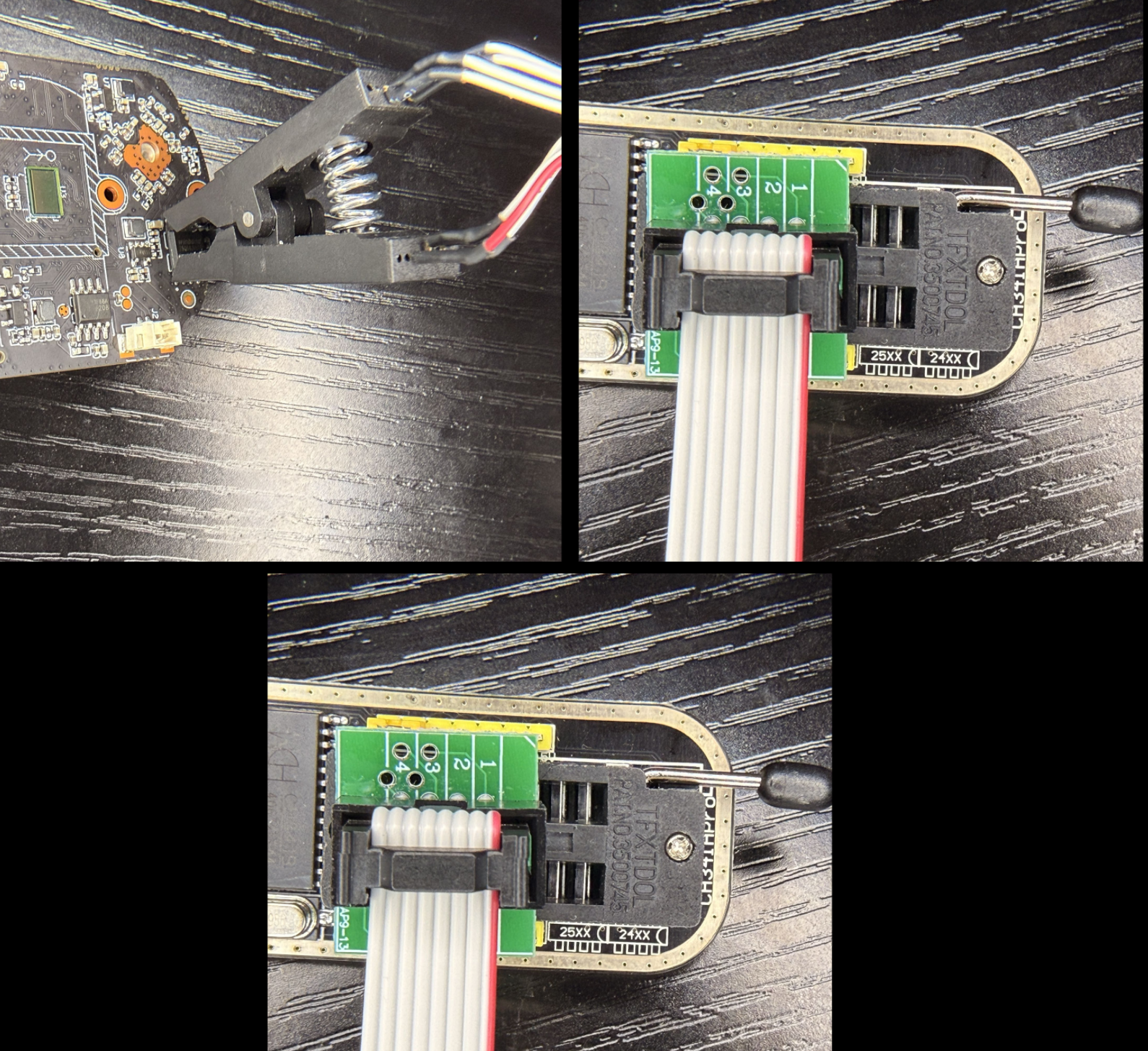

  • Using a SOP8 adapter in ZIF Connector (on CH341A) in the 25xx side
  • Clipped SOIC8 adapter clip onto W25Q64JV flash chip

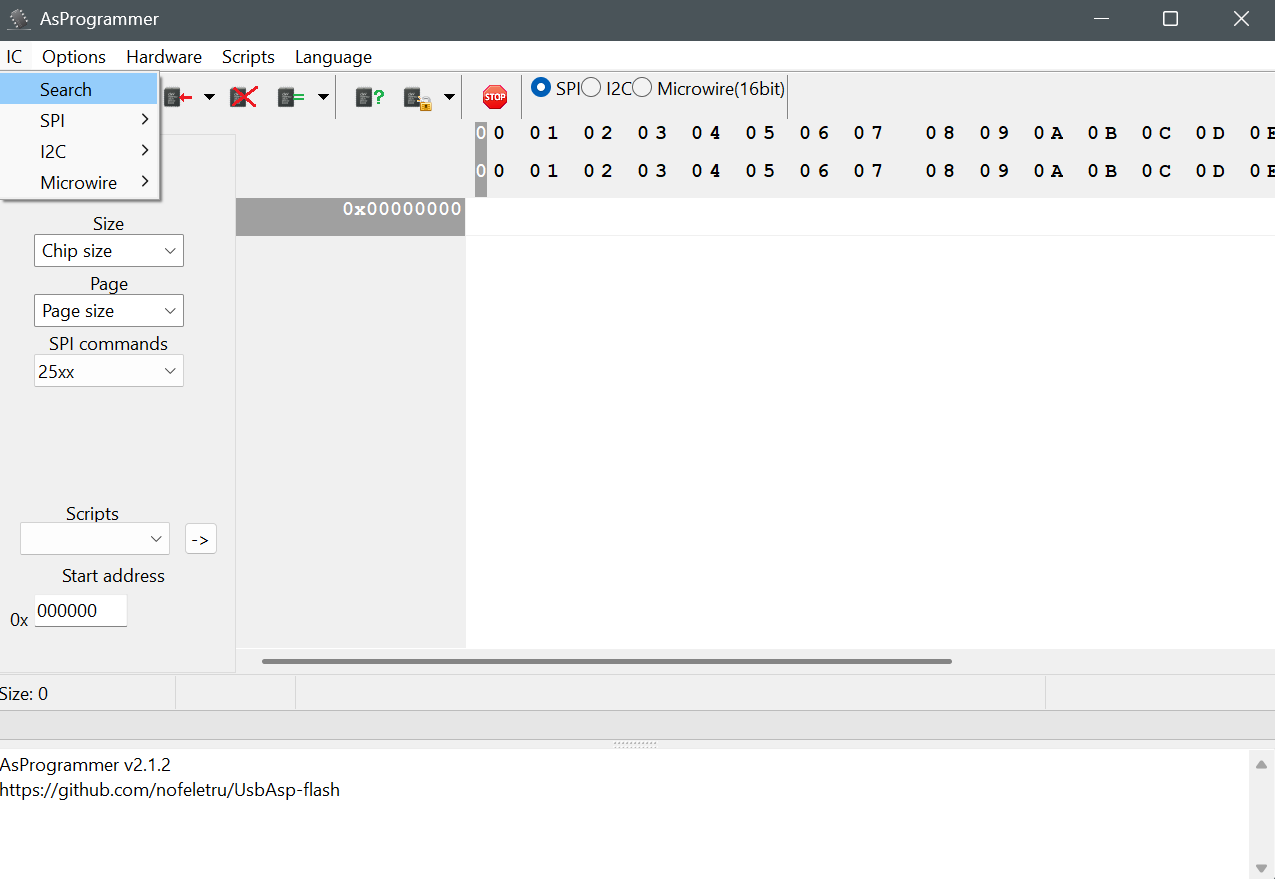

    • Using AsProgrammer, searched for W25Q64JV, set hardware to CH341A, plugged USB into computer, and hit “Read IC”
    • The flash was read multiple times, saving each output. Compared SHA256 hashes to confirm two matching bin files (successful reads- exact same duplicate misreads are unlikely, and all FF FF FF or 00 00 00 is easy to verify)

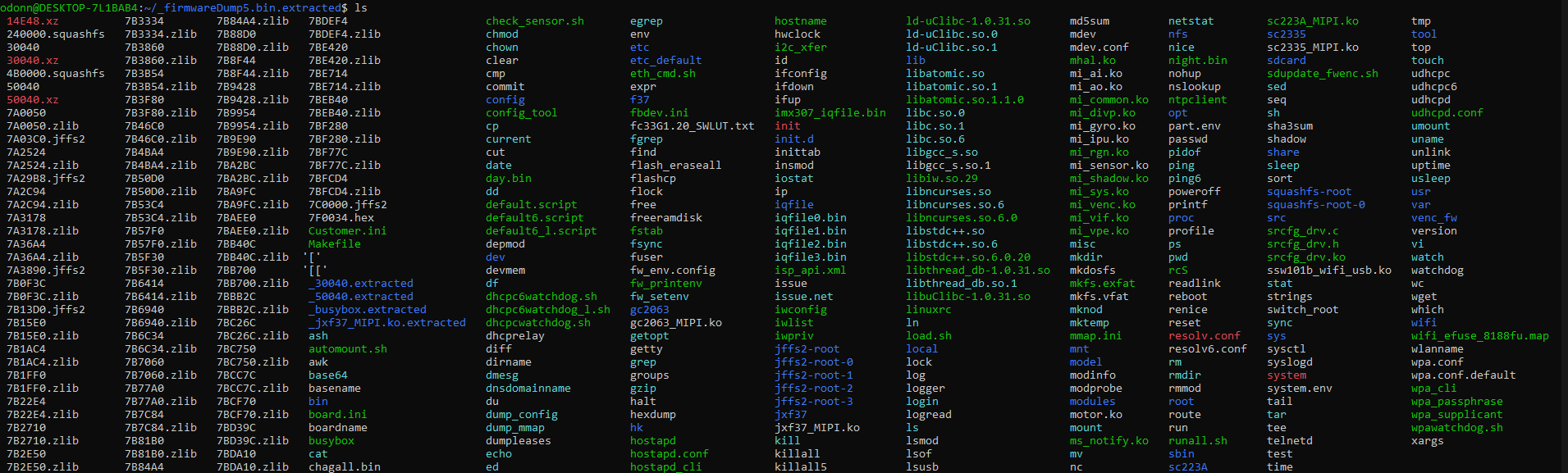

  • Full filesystem:
  • Finding Credentials:
    • From the filesystem, there are some key files:
    • File Contents
    • The value in shadow can be broken down to:
      • root = user
      • $1$ = algo
      • d4.uNxFN = salt
      • 0pEViwVp/r2FObKP/LfTE0 = hash
      • 15874 = date- days since epoch 1970

Values in Files

PathKey Value(s)
squashfs-root/system/system.envSUPPORT_DISABLE_CONSOLE=y
squashfs-root-0/vendor.envVENDORENV_ENABLE_TELNETD
squashfs-root-0/conf/base_conf.ini, squashfs-root-0/conf/base_para.ini, squashfs-root-0/conf/a31-101b_blurams_A0_conf.ini, squashfs-root-0/conf/a31-101b_blurams_A0_para.ini[auth] key=1111111111111111
start_debug.shauth key above is key to ukey
squashfs-root-0/conf/a31-101b_blurams_A0_conf.iniMouldeID=A31_SS_IPC

Partitions

Partition NameStarting AddressApproximate SizeDescription
U-Boot0x00000000320KBBootloader. First thing that runs when powered on. Initializes hardware, finds and loads kernel.
Kernel0x000500001.9MBGets loaded into RAM by U-Boot, initializes drivers (wifi chip, motor controllers, GPIO pins), mounts the filesystem, and starts init process.
RootFS0x00240000~2.5MBBase OS. BusyBox. Squashfs means it is compressed and is read only.
User0x004B0000~3MBApplication partition. Camera specific code. viCam binary, boot scripts, config files
MTD/Config0x007A0000320KBjffs2 partition. Writable partition designed for flash chips that handles wear leveling and maintains state from power loss.
Factory0x007F000064KBMAC address, Serial number, calibration data, device identity, etc.

Searching the binary for useful terms bash strings squashfs-root-0/vicam/viCam | grep -i "cloud\|server" - CloudApp::ICloudApp N8CloudApp9ICloudApp8IFactoryE CC_REGISTER_SUCCESS CC_SERVER_STATUS_OFFLINE

ICloudApp is a C++ interface

CC_REGISTER... “cloud connect”(?) what the device does on success/fail of connecting to the cloud?

in squashfs-root-0/boot/autoboot.sh:

THIS_DIR=`dirname $0`
cd ${THIS_DIR}/boot
find ./ -name S\*|sort|sed 's/\(.*\)/\1 start/g'|xargs -r -n2 sh

Runs all S## scripts in order:

  • S00tz
  • S01passwd
  • S06chksd
  • S07devinfo
  • S20telnet
  • S97dm.DmRun
  • S97speech
  • S98modules
  • S98ntp
  • S99dotstart

Telnet Root from Flash Dump

S20telnet:

THISDIR=`dirname $0`
source ${THISDIR}/../vendor.env
[ x"${VENDORENV_ENABLE_TELNETD}" = x"yes" ] || exit 1
case "$1" in
        start)
                echo "Starting telnetd ... "
                                telnetd > /dev/null 2>&1 &
                ;;
        stop)
                echo "Stopping telnetd ... "
                killall telnetd
                ;;
        restart)
                $0 stop
                sleep 1
                $0 start
                ;;
        *)
                echo "usage: $0 {start|stop|restart}"
                ;;
esac
exit

Checks vendor.env if VENDORENV_ENABLE_TELNETD=yes exists, by default it doesn’t → Telnet never starts Modifying vendor.env to have the line needed to start telnet, enables telnet. To get around the telnet password requirements: Changing telnetd > /dev/null 2>&1 & to telnetd -l /bin/sh > /dev/null 2>&1 & makes telnetd use /bin/sh as the login program instead of /login. Just a shell with no auth
